| Class 300 Globe Valve 截止阀 |
| 产品类别：美标阀系列 |
|
|
技术要求：
设计和制造：ANSI B16.34、BS1873
结构长度：ANSI B16.10
法兰连接：ANSI B16.5
试验和验收：API 598 |
|

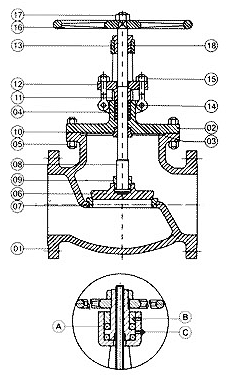

材料 Material
|
|
|
零件名称
|
材料
|
|
18
|
紧定螺钉
|
Carbon Steel
|
|
17
|
手轮锁紧螺钉
|
Carbon Steel
|
|
16
|
手轮
|
Carbon Steel
|
|
15
|
活节螺栓/螺母
|
A193 B7/A194 4,A193 B8/A194 8
|
|
14
|
销
|
Carbon Steel/SS
|
|
13
|
阀杆螺母/螺母
|
A439 D2/Cu-Alloy
|
|
12
|
填料压盖
|
Carbon Steel
|
|
11
|
填料压套
|
Stainless steel
|
|
10
|
上密封套
|
Stainless steel
|
|
09
|
卡套
|
CS+SS/SS/SS+STL
|
|
08
|
阀杆
|
Stainless steel
|
|
07
|
阀座
|
Carbon steel+SS/SS/SS+STL
|
|
06
|
阀瓣
|
Carbon steel+SS/SS/SS+STL
|
|
|
零件名称
|
WCB
|
LCB
|
WC6
|
WC9
|
|
05
|
螺栓螺母
|
A193 Gr B7/A 194 Gr2H
|
A320 Gr L7/A 194 Gr4
|
A 193 Gr B16/A194 Gr4/7
|
A193 Gr B16/A194 Gr 4/7
|
|
04
|
填料
|
Graphite
|
Graphite
|
Graphite
|
Graphite
|
|
03
|
垫片
|
Spiral Wound/Soft lron
|
Spiral Wound /Soft lron
|
Spiral Wound/SS304
|
Spiral Wound/SS304
|
|
02
|
阀盖
|
A216 Gr WCB
|
A352 Gr LCB
|
A217 Gr WC6
|
A217 Gr WC9
|
|
01
|
阀体
|
A216 Gr WCB
|
A352 Gr LCB
|
A217 Gr WC6
|
A217 Gr WC9
|
|
|
零件名称
|
C5
|
C12
|
CF8
|
CF8M
|
|
05
|
螺栓螺母
|
A193 Gr B6/A 194 Gr4/7
|
A193 Gr B16/A 194 Gr4/7
|
A193 Gr B16/A194 Gr 4/7
|
A193 Gr B7/A194 Gr 2H
|
|
04
|
填料
|
Graphite
|
Graphite
|
Graphite
|
Graphite
|
|
03
|
垫片
|
Spiral Wound/Soft lron
|
Spiral Wound /Soft lron
|
Spiral Wound/SS304
|
Spiral Wound/SS316
|
|
02
|
阀盖
|
A217 Gr C5
|
A217 Gr C12
|
A351 Gr CF8
|
A351 Gr CF8M
|
|
01
|
阀体
|
A217 Gr C5
|
A217 Gr C12
|
A351 Gr CF8
|
A351 Gr CF8M
|
|
Class 300
|
|
Size
|
inch
|
2
|
21/2
|
3
|
4
|
5
|
6
|
8
|
10
|
12
|
14
|
16
|
|
L,L1-RF,BW
|
mm
|
267
|
292
|
318
|
356
|
400
|
444
|
559
|
622
|
711
|
838
|
863
|
|
L2-RTJ
|
mm
|
283
|
308
|
333
|
371
|
416
|
460
|
575
|
638
|
727
|
854
|
879
|
|
K
|
mm
|
350
|
425
|
485
|
520
|
565
|
655
|
825
|
920
|
1155
|
1250
|
1295
|
|
Wt
|
mm
|
200
|
250
|
300
|
300
|
350
|
350
|
500
|
600
|
700
|
700
|
450*
|
|
|
kg
|
30
|
45
|
60
|
83
|
135
|
162
|
265
|
375
|
525
|
765
|
1100
|
|
|
|
|
