| 101型黄铜锻压球阀 |
| 产品型号：Q11F |
|
|
101型黄铜锻压球阀（加大）/101 forging brass ball valve(extre-big)

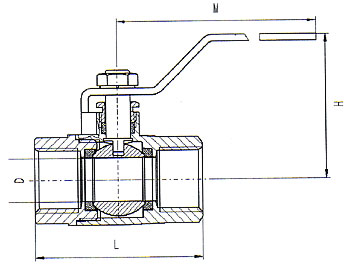

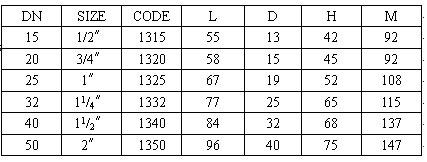

主要尺寸（Dimensions）： |
|
公称压力：PN≤1.6Mpa 适用介质：水、气、油 适用温度：T≤150℃
螺纹标准：55º英制G管螺纹
Nominal Pressure:PN≤1.6Mpa Applicable media:water,gas,oil etc
Applicable temperature:T≤150℃ Thread standard: 55ºinch system G pipe thread |
|
01型黄铜锻压球阀（加大）/101
forging brass ball valve(enlarged typel)

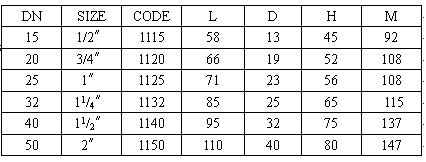

主要尺寸（Dimensions）：
|
|
公称压力：PN≤1.6Mpa 适用介质：水、气、油 适用温度：T≤150℃
螺纹标准：55º英制G管螺纹
Nominal Pressure:PN≤1.6Mpa Applicable media:water,gas,oil etc
Applicable temperature:T≤150℃ Thread standard: 55ºinch system G pipe thread |
|
|
|
